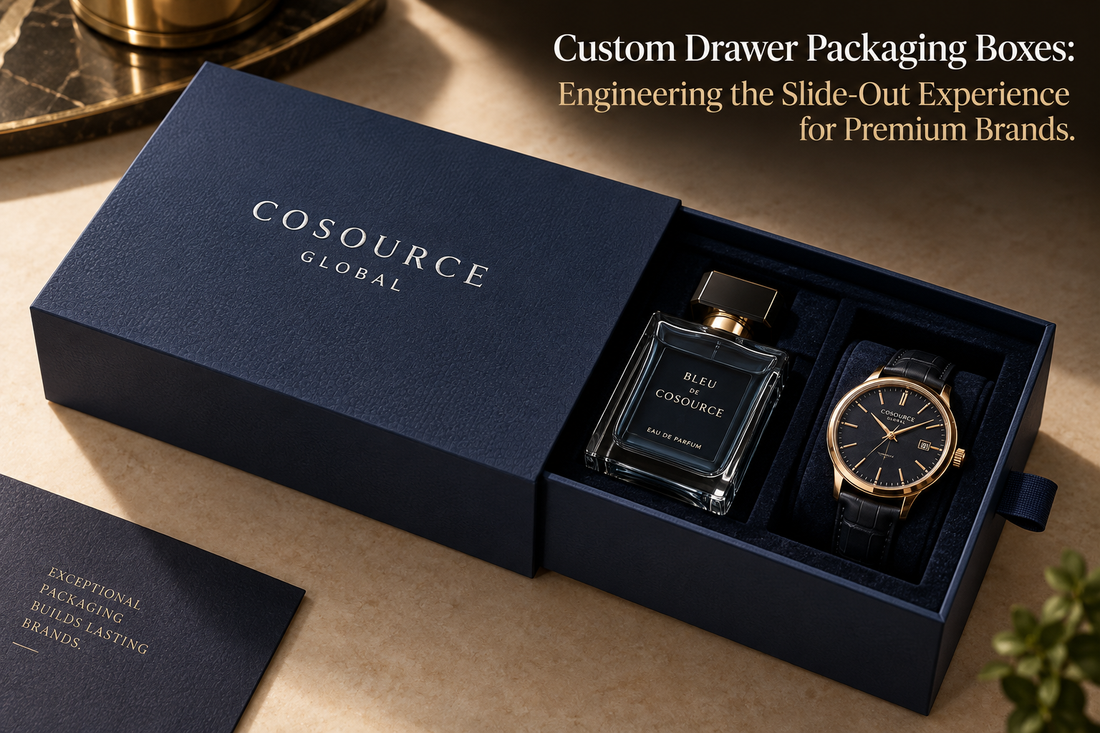

Custom Drawer Packaging Boxes: Engineering the Slide-Out Experience for Premium Brands
In high-end retail, the moment of discovery defines how a consumer values the product inside. While traditional lift-off lids and magnetic flap boxes dominate luxury shelves, custom drawer packaging boxes offer a distinctly interactive ceremony. Also known as slide boxes or matchbox-style rigid boxes, these two-piece constructions invite customers to pull, glide, and reveal their purchase with deliberate tactile feedback.
For brand managers, packaging engineers, and procurement directors, choosing custom drawer boxes is not solely an aesthetic statement. It is a technical packaging decision balancing friction tolerances, structural stiffness, assembly automation, and shipping efficiency. This guide covers structural engineering essentials, opening mechanisms, board specifications, cost tradeoffs, and factory sourcing workflows for luxury brands.
2. Pull Mechanisms and Opening Dynamics: Ribbon, Notch, or Metal Tab?
3. Board Selection, Surface Finishing, and Structural Integrity
4. Cost Drivers and Quality Control in Drawer Box Mass Production
5. Five-Step Sourcing Workflow for Custom Drawer Boxes
Structural Anatomy of Custom Drawer Packaging Boxes
A custom drawer packaging box consists of two primary elements: an outer sleeve (also called the sheath or case) and an internal sliding tray (the drawer). Unlike folding paperboard cartons, luxury drawer boxes utilize rigid chipboard or greyboard wrapped in specialty coated art papers, textured paper stocks, or fabric.
The sleeve can be open at one end (single-open sleeve) or both ends (open-ended sleeve / slide sleeve). In single-open designs, an enclosed back panel acts as a mechanical stop, preventing the drawer from falling out during presentation. Open-ended sleeves allow two-directional access or push-through interaction, which is popular for sleek cosmetic palettes and gift cards.
Beyond the primary shell, drawer boxes rely on precision internal components. When engineering custom drawer packaging boxes, technical teams focus on four foundational configurations:
Enclosed Single-End Sleeve
Constructed with three solid side walls and a sealed back panel. The internal tray slides smoothly into the sleeve and hits a firm resting backstop, offering maximum security and dust protection for expensive watches, jewelry, and luxury perfume flacons.
Open-Ended Dual-Slide Sleeve
Both short ends remain open, allowing the inner tray to be pushed through from either side or pulled out. This structure provides a clean, streamlined modern profile and is widely used for premium confections, boutique tea boxes, and slim electronics.
Multi-Tier Sliding Chest
A composite outer cabinet housing two, three, or four stacked sliding drawers. Designed for high-end advent calendars, limited-edition cosmetics collections, and VIP gift sets requiring multi-layered discovery.
Magnetic Stop Drawer Box
Embeds rare-earth neodymium magnets in the back of the tray and inner wall of the sleeve. Provides a satisfying haptic snap when the drawer reaches full closure, preventing unintended slide-outs in transit.
Pull Mechanisms and Opening Dynamics: Ribbon, Notch, or Metal Tab?
Because the inner tray sits flush with the outer sleeve opening, the pull mechanism serves as the primary ergonomic interface. It guides user interaction and reinforces brand identity through tactile contrast.
Selecting the right pull mechanism involves evaluating product weight, user ergonomics, assembly cost, and aesthetic cohesion. The three dominant mechanisms each offer distinct functional and visual advantages:
| Pull Mechanism | Primary Material | Best Suited For | Key Engineering Considerations |
|---|---|---|---|
| Grosgrain or Satin Ribbon | Polyester, cotton, or recycled PET | Jewelry, cosmetics, apparel accessories | Requires hot-cut edges to prevent fraying; securely glued behind the inner lining. |
| Die-Cut Thumb Notch | Sleeve / tray paperboard cutout | Tech accessories, stationery, confections | Minimalist single-material look; requires smooth turned edges to prevent paper tearing. |
| Brushed Metal Ring / Tab | Zinc alloy, brass, aluminum | Luxury spirits, bespoke timepieces, leather goods | Riveted through rigid core; requires backplate insulation to prevent scratching the product. |
| Leather / PU Pull Tab | Genuine leather, vegan microfiber PU | Men's grooming, luxury lifestyle accessories | Stitched or hot-stamped; adds warmth, flexibility, and organic texture to the rigid box. |
The resistance of the slide is governed by dimensional tolerances. A gap tolerance of 0.5mm to 0.8mm between the inner tray and the sleeve ensures smooth gliding while preventing wobbling. If the box utilizes a velvet or EVA foam insert that adds interior outward pressure, clearances must be calibrated on production samples before mass wrapping.
Board Selection, Surface Finishing, and Structural Integrity
The longevity and hand-feel of custom drawer packaging boxes depend on the core substrate and paper wrapping techniques. Luxury packaging engineers typically specify rigid greyboard between 1.5mm (1000gsm) and 2.5mm (1800gsm) depending on the dimensions and load-bearing requirements.
High-precision V-grooving (grooving into the board at a 90-degree angle before folding) creates razor-sharp, crisp 90-degree corners that prevent rounded edges. Once the core is formed, wrapping papers are applied using high-tack, low-moisture adhesives to eliminate warping, bubbles, or edge peeling.
Surface embellishments transform standard paperboard into an immersive brand canvas:
Hot Stamping & Foil Accents
Metallic gold, silver, rose gold, or holographic foils applied under heat and pressure create crisp reflective typography and branding on the outer sleeve and drawer face.
Blind Embossing & Debossing
Multi-level brass dies press tactile 3D relief into heavy art paper, adding sophisticated understated luxury without relying on excess ink.
Soft-Touch Matte Lamination
A tactile barrier coating that imparts a velvet-like smoothness while providing fingerprint resistance and scratch protection during retail handling.
Spot UV & 3D Texture Varnish
Selective high-gloss resin applied over matte backgrounds produces stunning dimensional contrast, highlighting pattern work or logos.
Cost Drivers and Quality Control in Drawer Box Mass Production
Procuring custom drawer packaging boxes wholesale requires understanding how structural complexity impacts unit price. Because a drawer box consists of two separate rigid units (sleeve and tray), machine setup and labor are generally higher than a one-piece folding box.
The primary cost drivers include board thickness, manual vs. automatic box-making, custom insert complexity, and surface craft applications. To ensure consistent quality across mass runs, procurement teams should establish strict quality control checkpoints:
| Quality Checkpoint | Inspection Standard | Critical Failure Mode |
|---|---|---|
| Slide Friction & Glide Test | Smooth opening force between 2N and 5N; zero jamming | Tray sticking due to moisture swelling or tight tolerances |
| Sleeve Squareness & Corner Seams | Crisp 90-degree corners with seamless paper wrap overlapping | Corner paper splitting, board exposure, or loose wrapping |
| Ribbon / Pull Tensile Strength | Pull tab withstands minimum 5kg to 10kg pull tension | Detached ribbon tab when customer opens the box |
| Insert Cavity Alignment | Die-cut EVA, sponge, or paperboard matches product within 0.3mm | Product rattles in transit or proves difficult to extract |
Five-Step Sourcing Workflow for Custom Drawer Boxes
Successfully managing an overseas packaging production run requires a systematic approach to technical alignment, physical prototyping, and mass production verification.
Establish exact product dimensions, payload weight, fragile contact zones, target retail price point, and whether a single-open or open-ended sleeve suits your unboxing flow.
Request comprehensive CAD dielines factoring in exact board calipers, paper wrap wrap-around allowances, and pull mechanism attachment tabs.
Test a fully finished production-grade sample with your actual physical product. Check slide smoothness, insert retention, ribbon feel, and color accuracy under standard retail lighting.
Validate that sliding trays do not self-eject or crush during vibration, drop, and climate chamber testing (to assess paper moisture absorption in humid shipping routes).
Lock Golden Samples against signed spec sheets, verifying sleeve rigidity, print registration, hot stamping adhesion, and outer carton stacking strength.
What a one-stop packaging partner coordinates for your brand
- Custom sleeve and tray engineering with calibrated friction tolerances
- Sourcing premium greyboard, specialty papers, and eco-friendly FSC-certified stocks
- Precision pull attachments (grosgrain ribbon, leather pull, thumb notches, metal hardware)
- Custom interior inserts in high-density EVA, molded pulp, or wrapped paperboard
- Integrated surface embellishments including foil stamping, debossing, and soft-touch lamination
- End-to-end quality inspection, consolidated logistics, and direct door-to-door delivery
Custom drawer packaging boxes bridge the gap between reliable structural protection and an elevated consumer ritual. When engineered with precision clearances, durable board cores, and thoughtful pull mechanisms, they turn everyday packaging into an enduring brand asset.
